Template Matching using DXF

目的

The task is to locate object using model created with .dxf file.

Input

An image of an object in.dxf file as a model and current images of the object

Output

The marked object's location

ヒント

To load an image saved in the .dxf format use the LoadImage_FromDxf filter. To create model you can use the CreateEdgeModel1 filter and then the LocateSingleObject_Edges1 to find the object's position on the image.

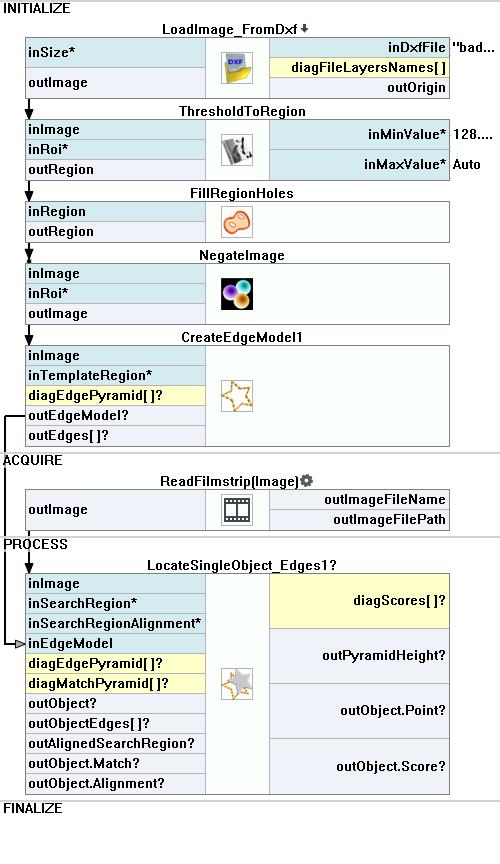

Macrofilter Main.

その他の資料

Template Matching - テンプレートマッチング テクニックの最も詳細な説明をしています。
