HMI Recorder

目的

This example shows how to record images using different camera interfaces.

Program overview

The program allows acquiring and saving images from cameras of different interfaces. The chosen camera can be changed while the program is running. The user can trigger acquisition manually or set it to recording mode where an image is acquired after every given period.

The program takes care of naming new image files to be saved on the disk. It has built-in mechanism to avoid overwriting previous files. While using the program the user can see a live image preview.

The interface consists of five panes. The pane Image Source Settings lists all possible image sources and allows the user to choose one of them. Only one source can be active at a time. Choosing a source which requires specifying a device address enables the "..." button next to it (as seen next to GigE Vision and GenICam GenTL). Clicking it opens a dialog where the user can choose the device.

The next pane, Saving image Settings, the user can specify where the images will be saved, the file format of them, and the name prefix. There are four available formats to choose: BMP, JPEG, PNG, TIFF. Additionally, the user can set the period between consecutive images to be saved in recording mode.

The third pane allows the user to start and stop recording or save only a single frame. It additionally shows the number of images saved during the current session.

The fourth pane is an image preview. The user can see a live feed of the camera.

The last pane has instructions how to use the program. Below that some of the error messages are displayed.

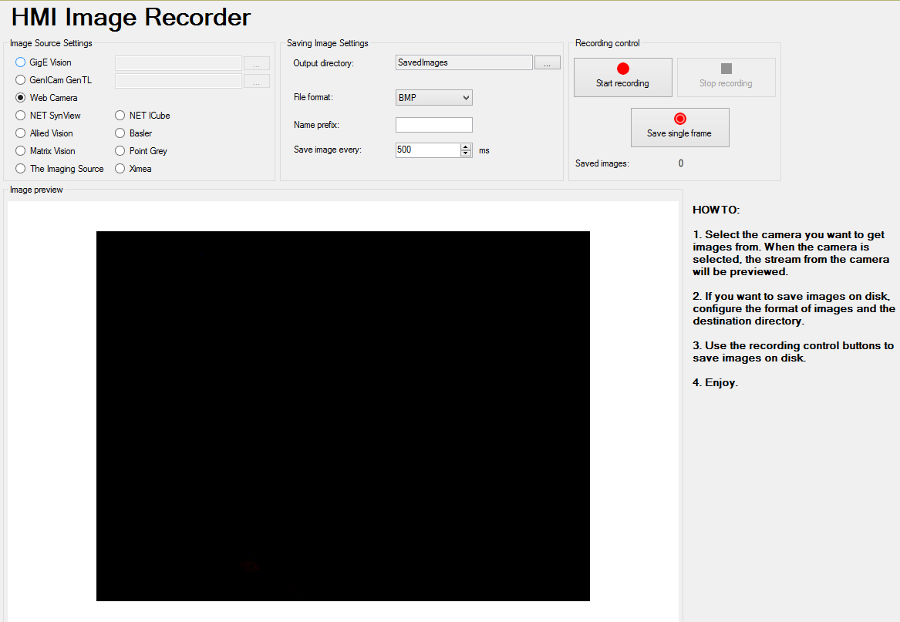

View of the HMI

Points of Interest

Due to its complexity the program requires more than basic knowledge of the software to comprehend. Among other things the program utilizes:

Those will be explained in more detail in the following part.

Program structure

The main part of the program is inside a task macrofilter MainLoop. The root of the program contains one MainLoop macrofilter and a Loop filter. This enables error handling and prevents the program from closing after encountering an error.

Error handling

As previously mentioned, one of the reasons to put most of the program into a task macrofilter MainLoop was to allow error handling. This prevents the application from crashing after encountering an error. Information about error handlers and creating them is available in the Error Handling tutorial.

In this program there are 2 error handlers - one for input/output errors and one for system errors. System errors can happen when the computers does not have the appropriate third-party driver installed. IO errors happen when the user tries to connect to a disconnected camera.

Both error handling filters have identical contents. First an error message is shown in the HMI. The program then waits for one second and resets the state off all the radio buttons.

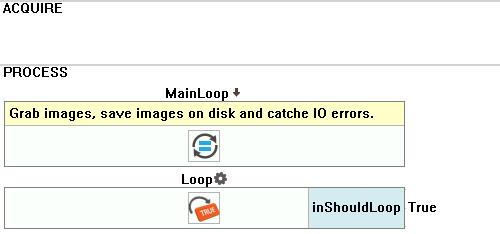

マクロフィルタ メイン

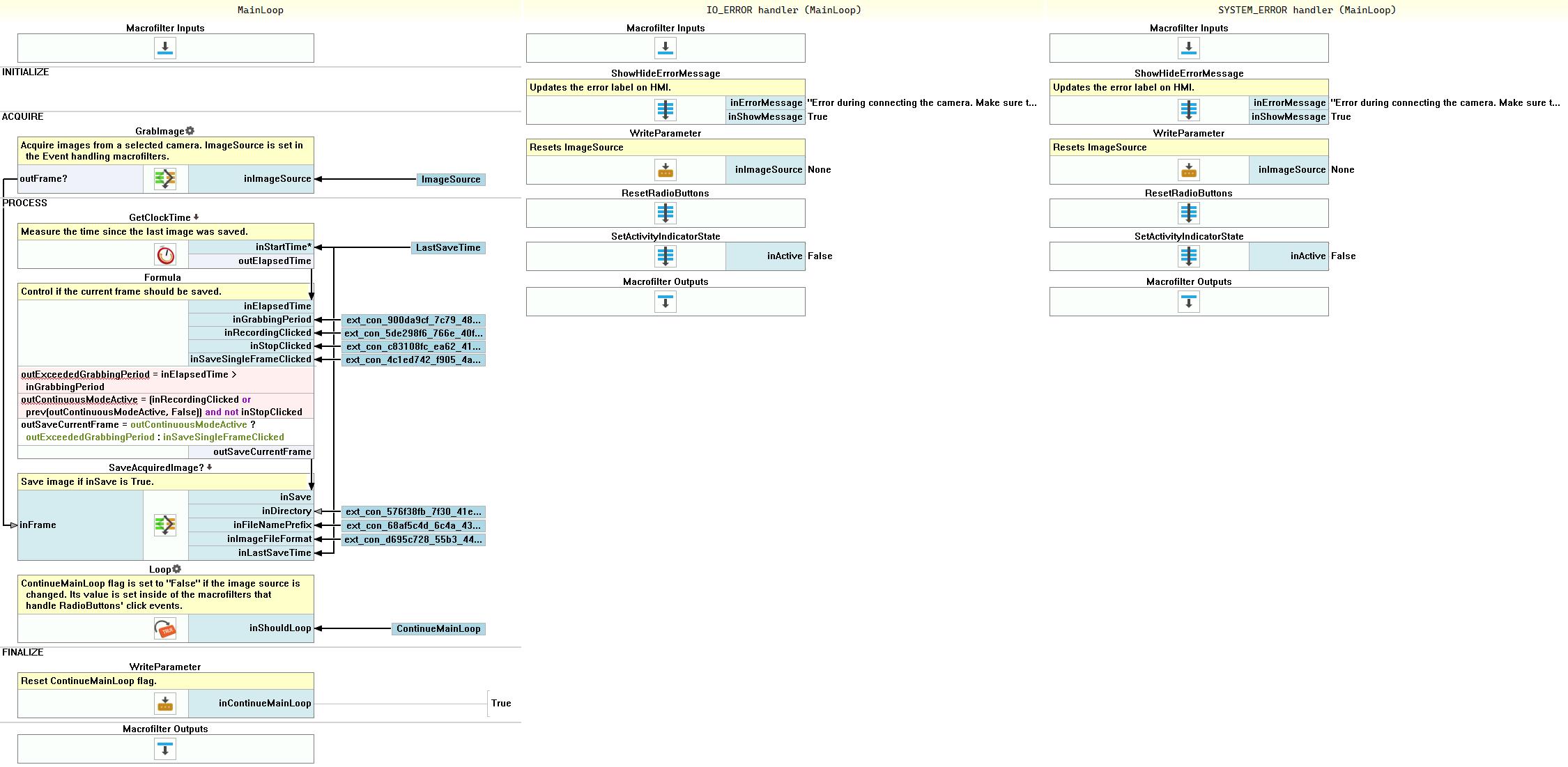

Macrofilter MainLoop

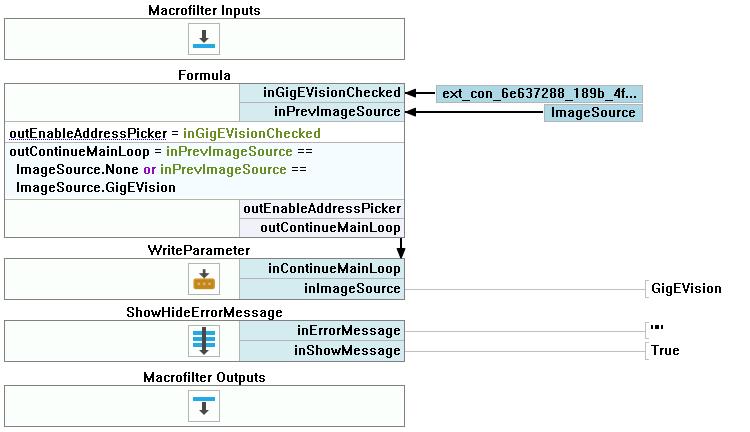

Macrofilter GigEVisionClicked
