Load 3D Points from File (load_point_cloud_from_file)

目的

This example shows how to read cloud of 3D points from *.txt file. The next step is to create a grid of 3D points to display them in 3D coordinate system.

Input

The text file containing XYZ position of points creating the surface.

Output

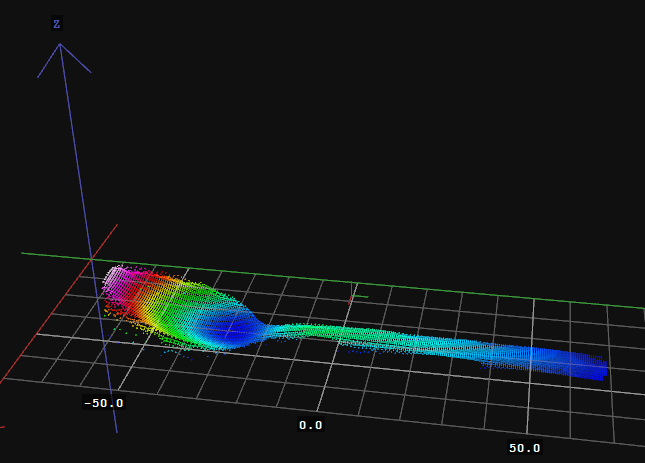

The loaded cloud.

ヒント

To load points saved in .txt format use the LoadPoint3DArrayFromTextFile. You can organize loaded points with the ArrangePoint3DArray. To reconstruct missing points use the CloseSurfacePoints.

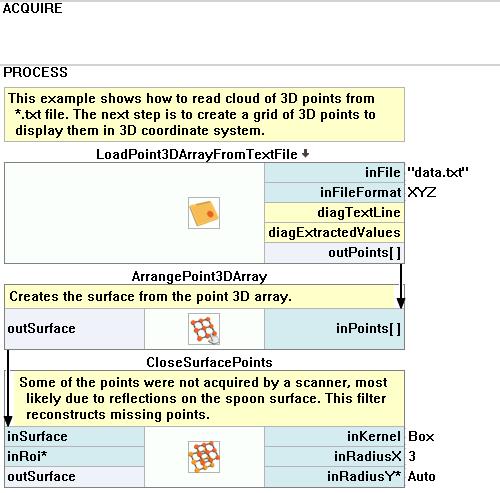

Macrofilter Main.
