Mounts (Golden Template Edges)

目的

The task is to detect mounts and divide them into OK/NG parts.

Input

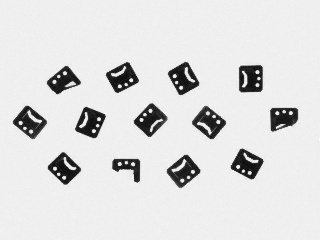

An image of mounts. The position of the objects is variable. Some of the objects are damaged.

Output

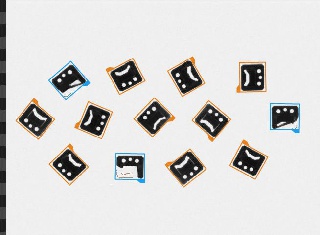

The marked mounts divided into OK and NG objects. The defects are also visible.

ヒント

Location of object is variable. To find object the Template Matching technique can be used.

To separate OK and NG parts, the GoldenTemplate technique can be used.

Use the ClassifyByPredicate to mark OK and NG items and the DilateRegion to enlarge the missing edges.

Solution (AVS)

In Workspace Explorer open workspace Examples and in Film strip window select Mounts dataset. Drag the Image channel to the ACQUIRE section. Label the output as Image
Add the LocateMultipleObjects_Edges1 to find position of the mounts:
- Connect its inImage input to the Image

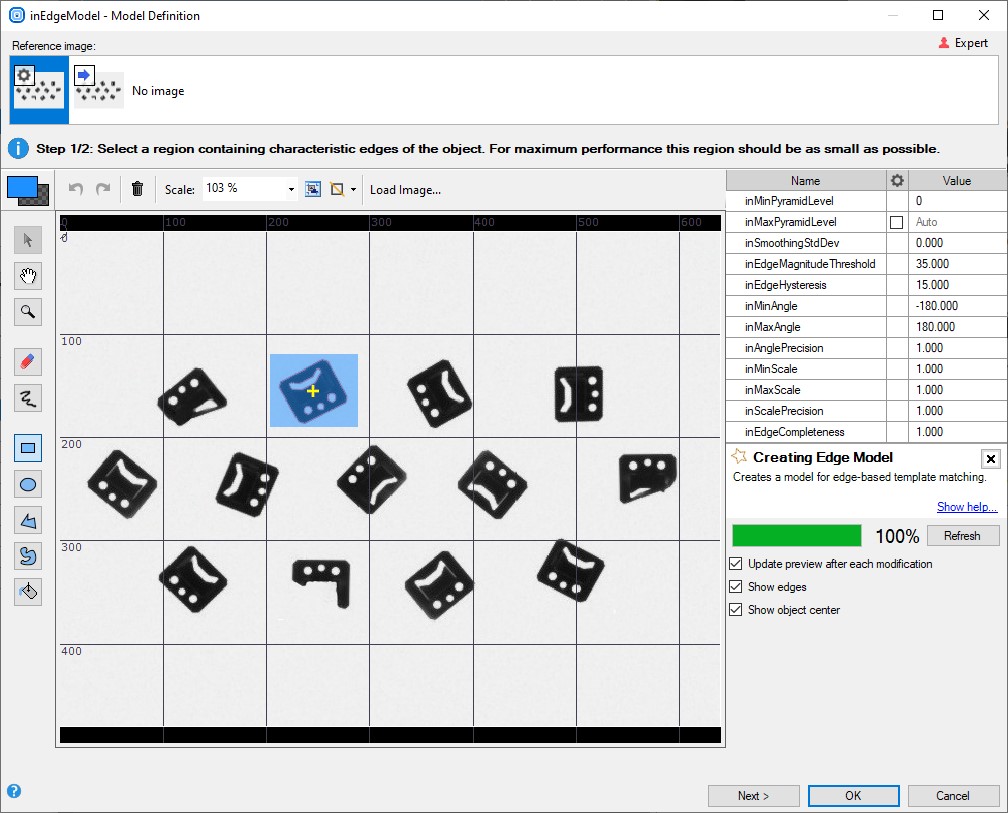

- In the Edge Model editor mark a correct object, like on the picture below.
- Label the outObjects.Match as Match, the outObject.Alignment as Alignment and the outObjects.Score as Scores.
Add the CompareGoldenTemplate_Edges to test the objects:
- Connect its inImage input to the Image.
- In the Properties section set the inGoldenTemplateAlignment to the Alignment.

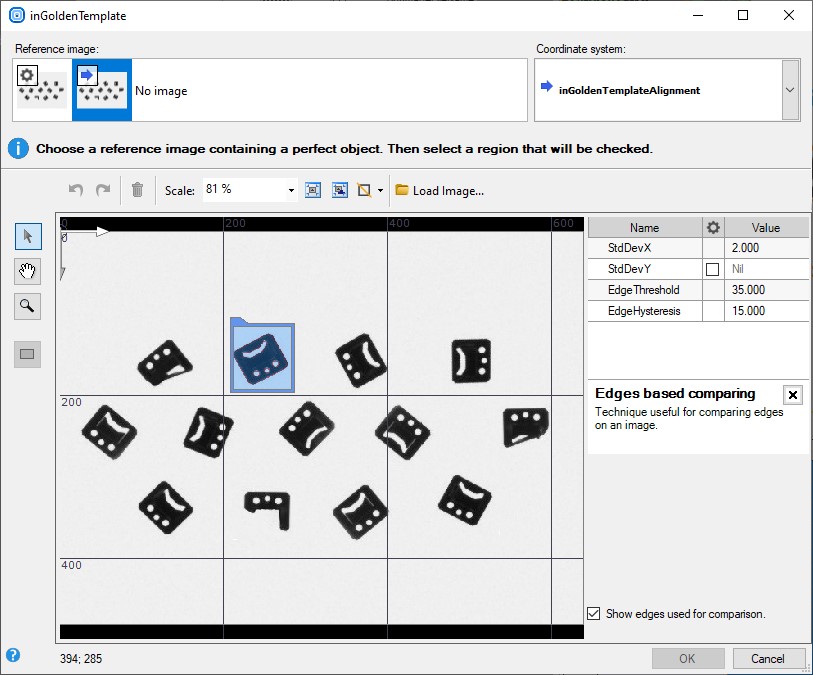

- In the EdgeGoldenTemplate editor mark the same object as in the LocateMultipleObjects_Edges1.
- Set the inStdDevX to 2.2.
- Set the inEdgeThreshold to 55.
- Set the inEdgeHysteresis to 13.
- Set the inMaxDistance to 7.
- Label the outDefects as Defects.
- Right click on the Defects and choose the Area. Label the output as DefectsArea.
- Label the outDefectsPresent as DefectsPresent.
Add the DilateRegion to enlarge the defects edges:
- Connect its input to the Defects.
- Set the inRadiusX to 0.
- Label the output as DefectsStronger.
Add the ClassifyByPredicate to divide objects into OK and NG parts:
- Connect the inArray to the Match and the inPredicate to the DefectsPresent.
- The outAccepted are the NG mounts and the outRejected are the OK mounts.

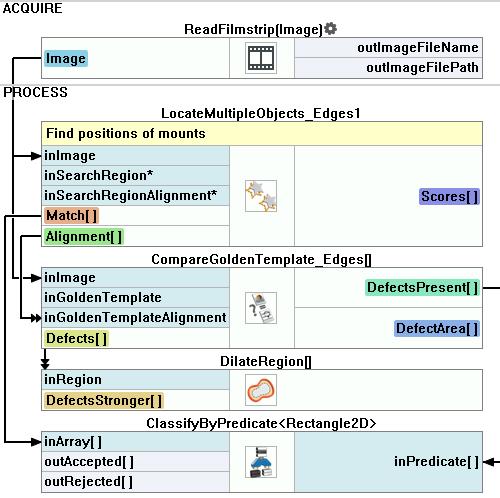

Macrofilter Main.

その他の資料

Golden Template - Article explaining how Golden Template technique works.
