Perspective Removal
目的
The task is to remove perspective distortion of an object on the input image.
Input

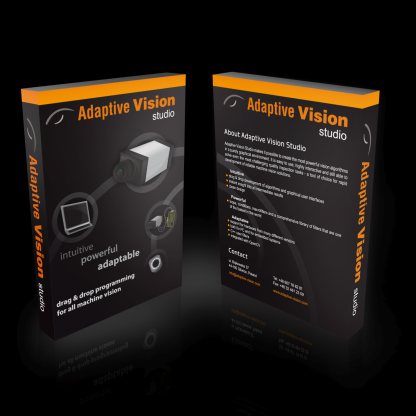

Single image with CD boxes affected with perspective distortion.
Output
An undistorted image of the boxes' faces.

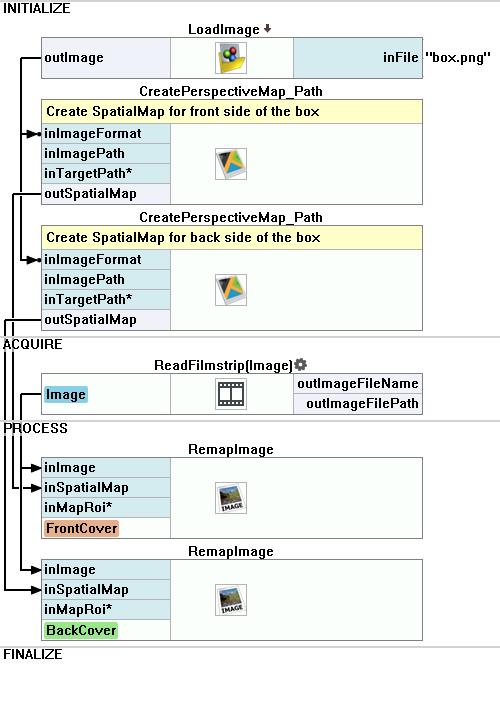

マクロフィルタ メイン
使用したフィルタ
アイコン | 名前 | 説明 |
---|---|---|
CreatePerspectiveMap_Path | Data preprocessing for fast perspective correction. The result is used by RemapImage. | |
RemapImage | Fast (precomputed) image transformations, especially for view undistortion or object geometry correction (e.g. pos recognition of labels on cylindrical bottles). | |
LoadImage | ファイルから単一の画像を読み込みます。 |
