Advanced| Module: | FoundationLite |
|---|
Projects a point onto a circle.
| Name | Type | Description | |
|---|---|---|---|
 |
inPoint | Point2D | |
|
inCircle | Circle2D | |
 |
outProjectionPoint | Point2D |
Description
Note that because of inaccuracies of floating-point arithmetic, some geometric operations (including this one) may lead to unpredictable results for degenerated cases. In this filter such a case occurs when the input point and the center of the input circle are almost equal.
Examples
 |
 |

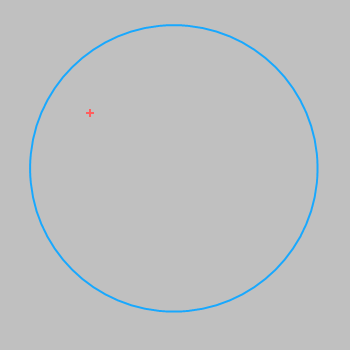

ProjectPointOnCircle performed on point and circle.
Complexity Level
This filter is available on Advanced Complexity Level.
