Projects points onto a circle.
| Name | Type | Description | |
|---|---|---|---|
 |
inPoints | Point2DArray | Points to be projected |
|
inCircle | Circle2D | Circle the points will be projected on |
 |
outProjectionPoints | Point2DArray | Projected points |
|
outProjectionArc | Arc2D? | Arc containing the projected points |
Description
Note that because of inaccuracies of floating-point arithmetic, some geometric operations (including this one) may lead to unpredictable results for degenerated cases. In this filter such a case occurs when an input point and the center of the input circle are almost equal.
Examples
 |
 |

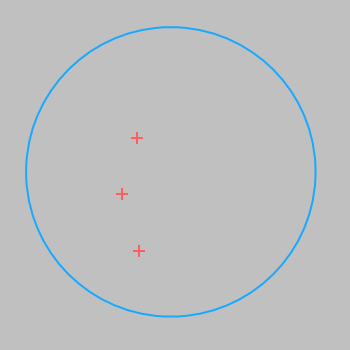

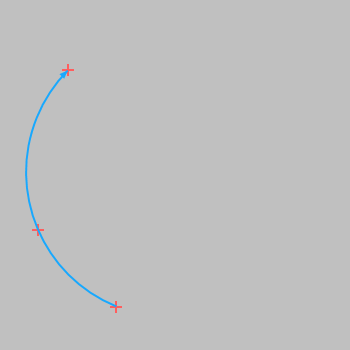

ProjectPointsOnCircle performed on points and circle.
Complexity Level
This filter is available on Advanced Complexity Level.
