Basic| Module: | FoundationLite |
|---|
Measures the distance between a point and a circle.
| Name | Type | Range | Description | |
|---|---|---|---|---|
 |
inPoint | Point2D | ||
|
inCircle | Circle2D | ||
|
inResolution | Real | 0.0 -  |
Number of real-world units per one pixel |
 |
outDistance | Real | ||
|
outConnectingSegment | Segment2D | ||
Examples
 |
 |

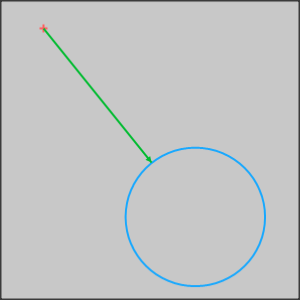

PointToCircleDistance performed on a sample point and a sample circle. The green segment is the value of outConnectingSegment output.
Complexity Level
This filter is available on Basic Complexity Level.
