Computes the length of an arc.
| Name | Type | Description | |
|---|---|---|---|
 |
inArc | Arc2D | |
 |
outLength | Real |
Examples
 |

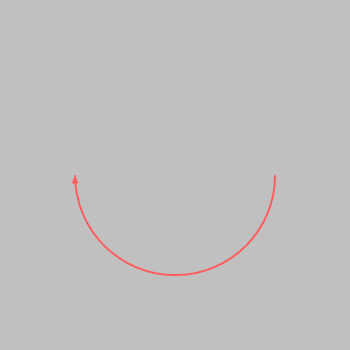

ArcLength performed on an arc with parameters: X = 175, Y = 175, Radius = 100, StartAngle = 0, SweepAngle = 180.
The outLength returns a value of 314,159.
Complexity Level
This filter is available on Advanced Complexity Level.
