Basic| Module: | FoundationLite |
|---|
Computes the orientation angle of a line as angle in the range from 0 to 180.
| Name | Type | Description | |
|---|---|---|---|
 |
inLine | Line2D | |
 |
outOrientationAngle | Real |
Examples
 |

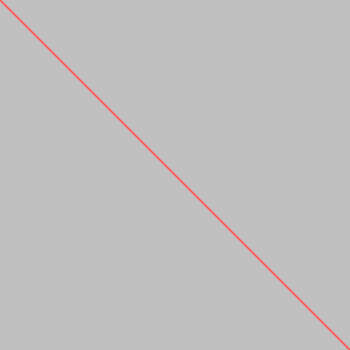

LineOrientation performed on a line.
The outOrientationAngle in this case returns a value of 45.
Complexity Level
This filter is available on Basic Complexity Level.
