LerpPaths

Advanced

Module: FoundationLite

Linearly interpolates between two paths.

Name Type Range Description
Input value
 inPath0 Path
Input value
 inPath1 Path First input path
Input value
 inLambda Real - - Interpolation between the input paths where 0.0 value is equal to inPath0 and 1.0 to inPath1
Output value
 outPath Path Output path

Examples

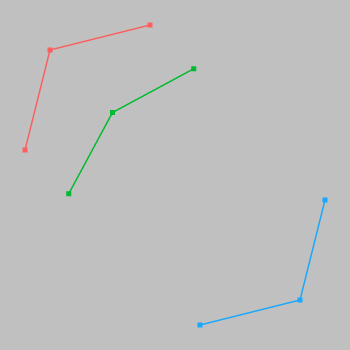

LerpPaths performed on red inPath0 and blue inPath1 with inLambda = 0,25. Green is the resulting outPath.

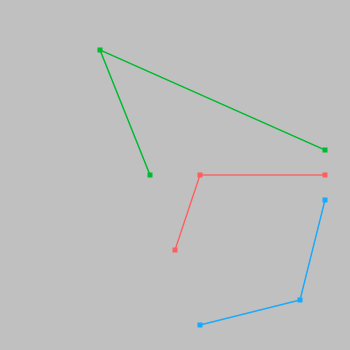

LerpPaths performed on red inPath0 and blue inPath1 with inLambda = -1,0. Green is the resulting outPath.

Remarks

Please note that:
  • interpolation begins at inPath0,
  • for positive inLambda values interpolation is performed in the direction of inPath1 while for negative - in the direction of a path which is the result of the following operation: (inPath0 - inPath1), in example a path consisting of inPath1 points mirrored by the corresponding inPath0 points.
Hence when inLambda = 0,0, outPath is equal to inPath0, while for inLambda = 1,0 it's the same as inPath1 and for inLambda = -1,0 - as (inPath0 - inPath1). Other inLambda values interpolate between the input paths and beyond.

Errors

This filter can throw an exception to report error. Read how to deal with errors in Error Handling.

List of possible exceptions:

Error type Description
DomainError Numbers of points in paths are not the same in LerpPaths.
DomainError Open and closed paths on input in LerpPaths.

Complexity Level

This filter is available on Advanced Complexity Level.
