SegmentArrayIntersections

Advanced

Module: FoundationLite

Computes a common points or segment of any segments from the set.

Name Type Description
Input value
 inSegments Segment2DArray Input segments
Output value
 outIntersectionPoints Point2DArray Intersection points
Output value
 outFirstIntersectionIndices IntegerArray First indices of the input segments which corresponds to the intersection points
Output value
 outSecondIntersectionIndices IntegerArray Second indices of the input segments which corresponds to the intersection points
Output value
 outOverlapSegments Segment2DArray Overlap segments
Output value
 outFirstOverlapIndices IntegerArray First indices of the input segments which corresponds to the overlap segments
Output value
 outSecondOverlapIndices IntegerArray Second indices of the input segments which corresponds to the overlap segments

Examples

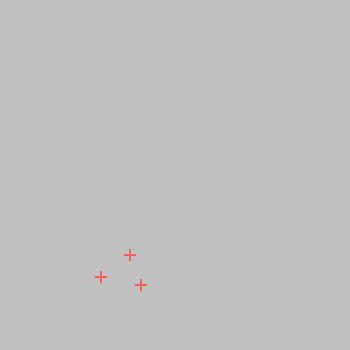

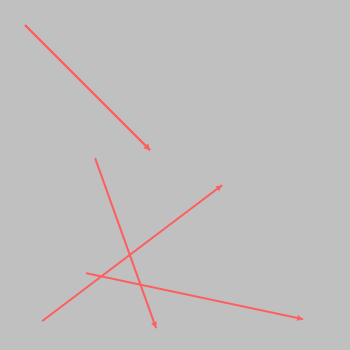

SegmentArrayIntersections performed on segments.

Hardware Acceleration

This operation supports automatic parallelization for multicore and multiprocessor systems.

Complexity Level

This filter is available on Advanced Complexity Level.
