Start » Filter Reference » Geometry 2D » Geometry 2D Spatial Transforms » RotateCircle
Advanced| Module: | FoundationLite |
|---|
Rotates a circle clockwise around a center point.
| Name | Type | Description | |
|---|---|---|---|
 |
inCircle | Circle2D | |
|
inCenter | Point2D | Center of rotation |
|
inAngle | Real | Clockwise rotation angle |
|
inInverse | Bool | Switches to the inverse operation |
 |
outCircle | Circle2D |
Examples
 |
 |

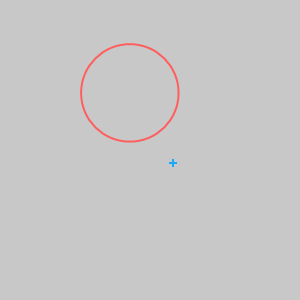

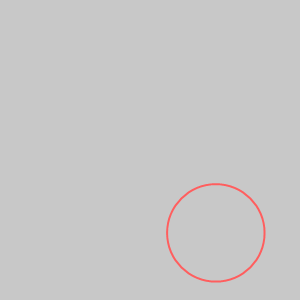

RotateCircle performed on the sample circle, inCenter = (173.0, 163.0), inAngle = 180.0 and inInverse = False. The inCenter point is drawn on the first image in blue
Complexity Level
This filter is available on Advanced Complexity Level.
