RotateImage

Basic

Module: FoundationLite

Rotates an image clockwise.

Name Type Description
Input value
 inImage Image Input image
Input value
 inAngle Real Rotation angle (clockwise)
Input value
 inSizeMode RotationSizeMode
Input value
 inInterpolationMethod InterpolationMethod
Input value
 inInverse Bool 'True' changes rotation to counter-clockwise
Output value
 outImage Image Output image
Output value
 outOutputAlignment CoordinateSystem2D Alignment of the output image

Description

The operation rotates the inImage around its center. Dimensions of the resulting image depends on inSizeMode parameter. In 'Fit' mode size is extended to fit the rotated image. In 'Preserve' mode size of source image is left unchanged and part of rotated image may be lost. Two modes of pixel interpolation are available, the bilinear filtering being more precise and computationally expensive.

Examples

Description of usage of this filter can be found in examples and tutorial: HMI Configuration Page, Image Modification Using the HMI, Using HMI multipanel control.

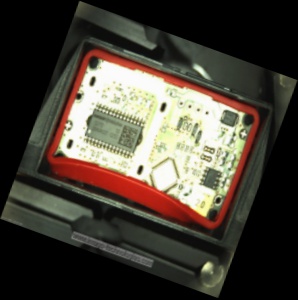

RotateImage performed on the sample image in Fit mode with inAngle = 20.0.

Hardware Acceleration

This operation supports automatic parallelization for multicore and multiprocessor systems.

Errors

This filter can throw an exception to report error. Read how to deal with errors in Error Handling.

List of possible exceptions:

Error type Description
DomainError Image dimensions too big in RotateImage.

Complexity Level

This filter is available on Basic Complexity Level.
