Module: | FoundationLite |
---|
Inverse of CropImage.
Name | Type | Range | Description | |
---|---|---|---|---|
inImage | Image | Input image | ||
inSelection | Box | The same value as in CropImage | ||
inWidth | Integer | 0 - | Width of the original image | |
inHeight | Integer | 0 - | Height of the original image | |
outImage | Image | Output image |
Description
Inverse of CropImage. Can create borders around original image e.g. passing x:50 y:50 will create new image with filled 50 pixels on top and 50 on left of the original image. inWidth and inHeight specifies the new image dimensions, Width and Height from inSelection property are not used.
Examples
inSelection property | Preview |
---|---|

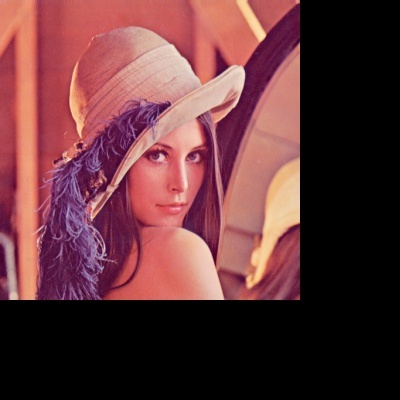

origin in x:0 y:0 | |

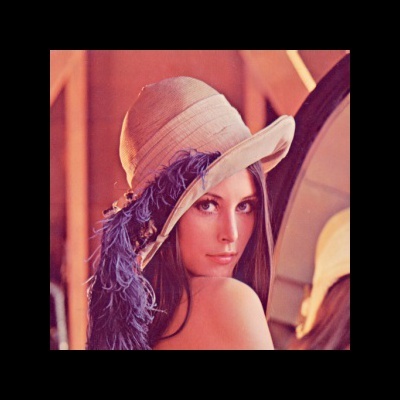

origin in x:50 y:50 |
Complexity Level
This filter is available on Basic Complexity Level.
See Also
- CropImage – Creates an image from a box-shaped fragment of the input image (with margins if requested).
