PathTurnAngleProfile

Advanced

Module: FoundationPro

Computes the profile of turn angles at characteristic points of a path.

Name Type Description
Input value
 inPath Path Input path
Output value
 outTurnAngleProfile Profile

Description

The operation iterates over the characteristic points of the inPath and computes the absolute value of path turn angle at each one. The resulting outTurnAngleProfile profile consists of the angles computed at consecutive points of the path.

Examples

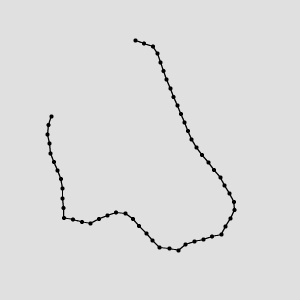

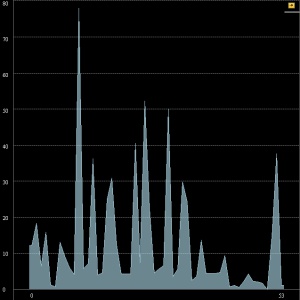

PathTurnAngleProfile run on the sample path

Errors

This filter can throw an exception to report error. Read how to deal with errors in Error Handling.

List of possible exceptions:

Error type Description
DomainError Input path contains a pair of equal consecutive points in PathTurnAngleProfile.

Complexity Level

This filter is available on Advanced Complexity Level.
