PathToPathDistanceProfile

Basic

Module: FoundationPro

Computes the profile of distances between two paths.

Name Type Range Description
Input value
 inPath1 Path First input path
Input value
 inPath2 Path Second input path
Input value
 inPathDistanceMode PathDistanceMode Distance measuring method
Input value
 inResolution Real 0.0 -
Output value
 outDistanceProfile Profile Profile of distances between second path and consecutive points of first path
Output value
 outDistances RealArray Distances between second path and consecutive points of first path
Output value
 outConnectingSegments Segment2DArray Segments connecting second path and consecutive points of first path having minimal length

Description

The operation iterates over characteristic points of inPath1 and at each point computes the distance from this point to inPath2. The distance is computed as follows, depending on the value of inPathDistanceMode:

  • The distance to nearest characteristic point of inPath2, if inPathDistanceMode is set to PointToPoint.
  • The minimal distance to inPath2 segments adjacent to the nearest characteristic point of inPath2 (which is much more precise), if inPathDistanceMode is set to PointToSegment.

The operation computes outDistanceProfile profile of consecutive distances and, additionally, outConnectingSegments array of corresponding line segments.

Examples

Description of usage of this filter can be found in examples and tutorial: Capsules, Rubber Ring.

Sample paths

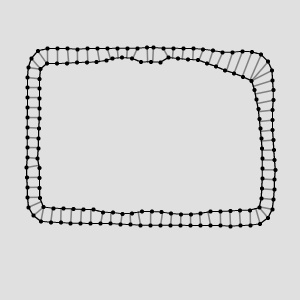

The resulting outConnectingSegments drawn onto the input paths.

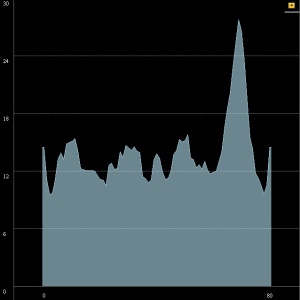

The resulting outDistanceProfile.

Errors

This filter can throw an exception to report error. Read how to deal with errors in Error Handling.

List of possible exceptions:

Error type Description
DomainError Second input path is empty and first input path is not empty in PathToPathDistanceProfile.

Complexity Level

This filter is available on Basic Complexity Level.
