PathToPointDistanceProfile

Basic

Module: FoundationBasic

Computes the profile of distances between the specified point and the characteristic points of a path.

Name Type Range Description
Input value
 inPoint Point2D Input point
Input value
 inPath Path Input path
Input value
 inResolution Real 0.0 -
Output value
 outDistanceProfile Profile Profile of distances between input point and consecutive points of input path
Output value
 outDistances RealArray Distances between input point and consecutive points of input path
Output value
 outConnectingSegments Segment2DArray Segments connecting input point and consecutive points of input path

Description

The operation iterates over characteristic points of inPath and at each point computes the distance from this point to inPoint. The operation computes outDistanceProfile profile of consecutive distances and, additionally, the outConnectingSegments array of corresponding line segments.

Examples

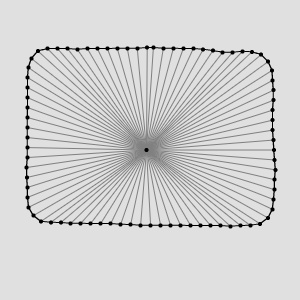

The resulting outConnectingSegments drawn onto the input data.

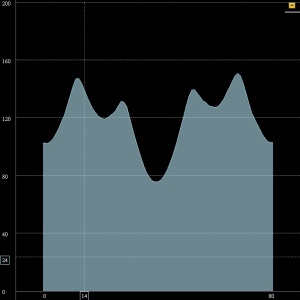

The resulting outDistanceProfile.

Complexity Level

This filter is available on Basic Complexity Level.
