Moves a path from a local coordinate system to the absolute one.
Applications
Required when there is a path defined in a local coordinate system, but the next image-related filter in the program does not have any inAlignment input.
| Name | Type | Description | |
|---|---|---|---|
 |
inPath | Path | Input path |
|
inAlignment | CoordinateSystem2D | Coordinate system to align to |
|
inInverse | Bool | Switches to the inverse transform |
 |
outAlignedPath | Path |
Description
AlignPath aligns the inPath to the inAlignment coordinate system. The input path is translated, rotated and scaled.
The inAlignment is usually an alignment of an object found by some template matching algorithm.
Examples
 |
 |

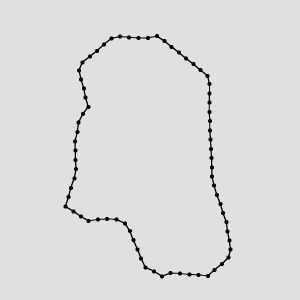

AlignPath run on the sample paths.
Complexity Level
This filter is available on Advanced Complexity Level.
See Also
- TranslatePath – Translates a path by a vector.
- RotatePath – Rotates a path clockwise around a center point.
