PolygonArea


Module: FoundationBasic

Computes the area of polygon.

Name Type Description
Input value
inPolygon Path
Output value
outArea Real

Description

The operation computes the area of a polygon bounded by a closed path. The area is measured in square pixels. As paths in AVS are subpixel-precise, the result may be (and usually is) non-integer.

Note that if the input path is not a valid polygon (i.e. it has at least one self-intersection), the computation may lead to results that are not intuitive.

Examples

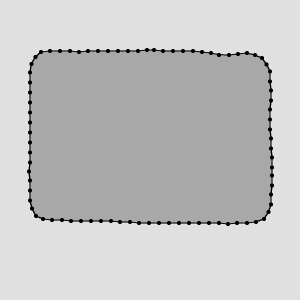

Area of the sample shape equals to 40652.37.

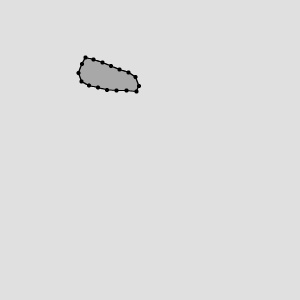

Area of the sample shape equals to 1287.675.

Errors

This filter can throw an exception to report error. Read how to deal with errors in Error Handling.

List of possible exceptions:

Error type Description
DomainError Open path on input in PolygonArea.

Complexity Level

This filter is available on Basic Complexity Level.

See Also

  • RegionArea – Computes the number of pixels contained in a region.
