TestPointInPolygon

Basic

Module: FoundationLite

Tests whether a point lies inside a polygon.

Name Type Description
Input value
 inPoint Point2D Point the position of which will be tested
Input value
 inPolygon Path Polygon against which the position will be tested
Output value
 outIsContained Bool True if point lies inside the polygon, false otherwise

Description

The operation tests if inPoint lies inside inPolygon.

Due to inaccuracy of floating point representation a point lying extremely close to a path may considered to be on either of the sides of the path or exactly on the path itself.

Examples

TestPointInPolygon run on the sample data produces the outIsContained = true

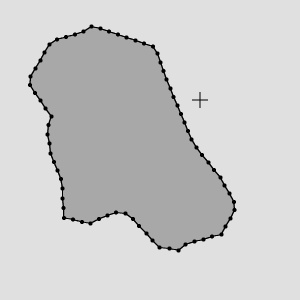

TestPointInPolygon run on the sample data produces the outIsContained = false

Errors

This filter can throw an exception to report error. Read how to deal with errors in Error Handling.

List of possible exceptions:

Error type Description
DomainError Empty polygon on input in TestPointInPolygon.
DomainError Open path on input in TestPointInPolygon.

Complexity Level

This filter is available on Basic Complexity Level.
