RotateProfile


Module: FoundationPro

Moves the last element ahead of the first one (inShift times).

Name Type Description
Input value
inProfile Profile Input profile
Input value
inShift Integer
Output value
outProfile Profile Output profile

Description

Operation computes the profile of input profile elements shifted cyclically.

Examples

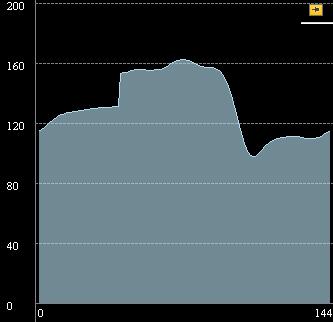

Input profile

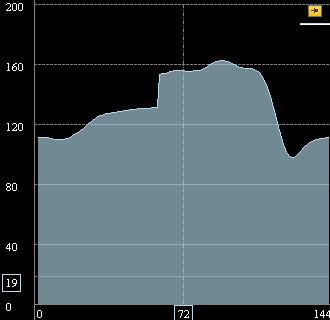

Output profile1

RotateProfile performed on input profile with inShift = 20 produced outProfile = Output profile1

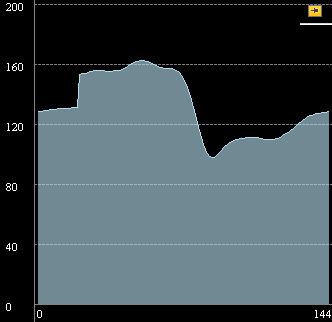

Output profile2

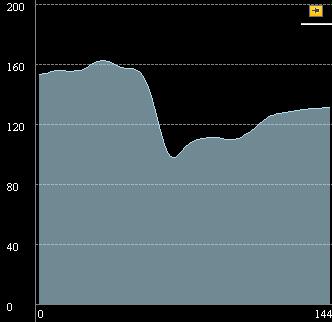

Output profile3

RotateProfile performed on input profile with inShift = 40 produced outProfile = Output profile2 and operation performed on the same input profile with inShift = 60 produced outProfile = Output profile3

Complexity Level

This filter is available on Basic Complexity Level.
