Shape Fitting: Gasket (shape_fitting_gasket)

Aim

Your task is to create a program which will be able to measure the distance between two holes in a gasket.

Input

Images of a gasket having variable location and rotation.

The input images are stored in gasket_inspection directory.

Output

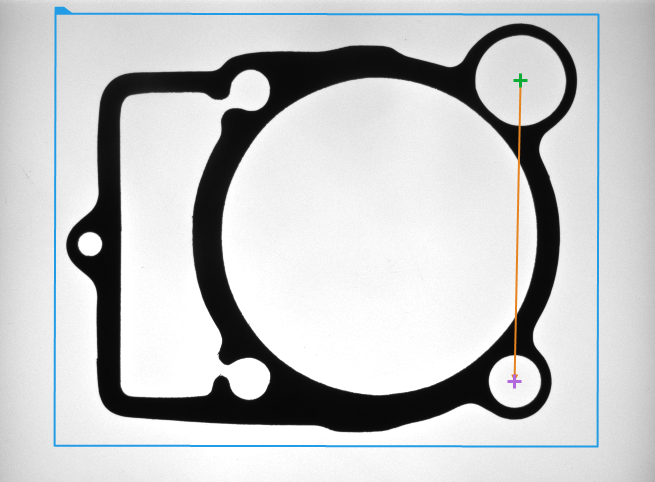

The distance between the centers of two holes.

Hints

Start the program as in the "Edge-based Template Matching: Gasket" tutorial. Then use FitCircleToEdges filters to precisely detect the holes and PointToPointDistance to measure the distance between their centers.

Labeling connections is explained in this article.

Solution (AVS)

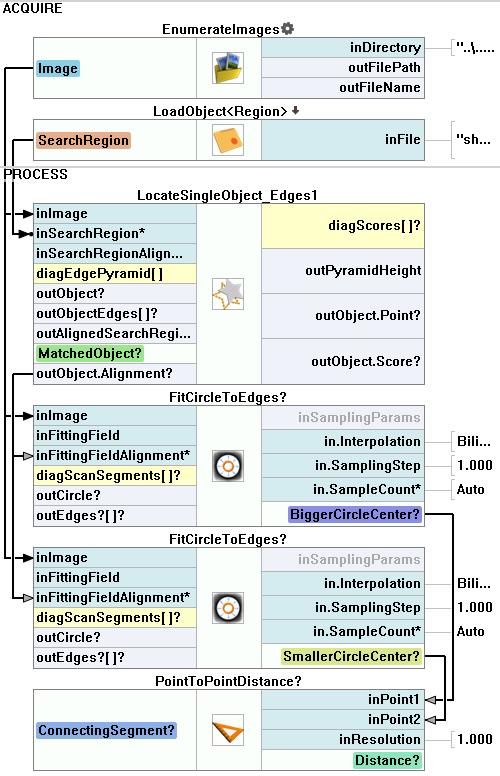

  1. Start with the program created in the "Edge-based Template Matching: Gasket" tutorial.

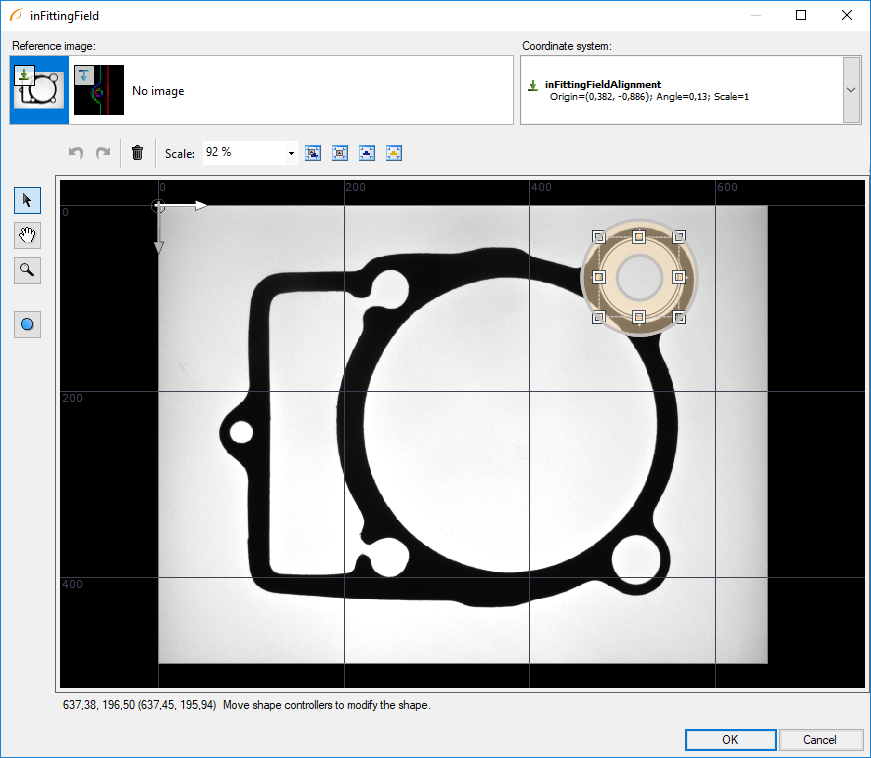

  2. Add FitCircleToEdges filter and define its inFittingField input as shown in the picture below.

  3. Add a second FitCircleToEdges filter and configure it for the second hole.

  4. Add the output circles to a data preview.

  5. Expose the outCircle.Center output on both of the shape fitting filters by using the "Show/Hide Ports" command.

  6. Add PointToPointDistance filter and connect the two circle centers to its inputs.

  7. Create a second data preview for the outDistance output.
