Performs a morphological erosion on a box using box kernel.
| Name | Type | Range | Description | |
|---|---|---|---|---|
 |
inBox | Box | Input box | |
|
inRadiusX | Integer | 0 -  |
Horizontal radius of the box kernel |
|
inRadiusY | Integer* | 0 - |
Vertical radius of the box kernel |
 |
outBox | Box | Eroded box | |
Description
Performs a morphological erosion on a box using box kernel.
Examples
 |
 |

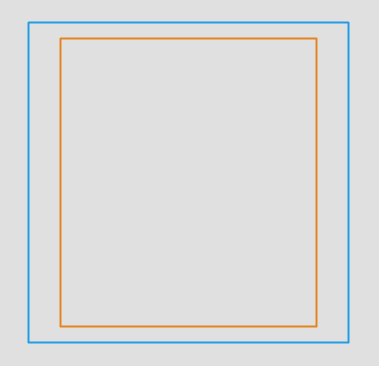

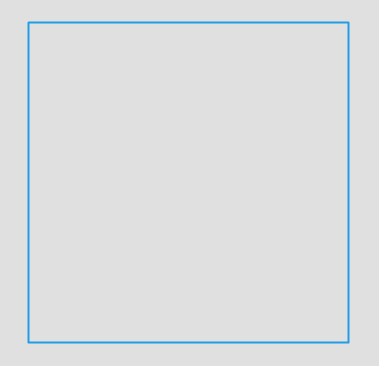

ErodeBox performed with kernel size 2x1.
Complexity Level
This filter is available on Advanced Complexity Level.
See Also
- ResizeBox_Relative – Resizes a box to relatively defined dimensions.
- ResizeRegion – Enlarges or shrinks a region to new dimensions.
