Moves an arc from a local coordinate system to the absolute one.
Applications
Required when there is an arc defined in a local coordinate system, but the next image-related filter in the program does not have any inAlignment input.
| Name | Type | Description | |
|---|---|---|---|
 |
inArc | Arc2D | |
|
inAlignment | CoordinateSystem2D | Coordinate system to align to |
|
inInverse | Bool | Switches to the inverse transform |
 |
outAlignedArc | Arc2D |
Description
AlignArc aligns the inArc to the inAlignment coordinate system. The input arc is translated, rotated and scaled.
The inAlignment is usually a coordinate system found by some template matching algorithm.
Examples
 |
 |

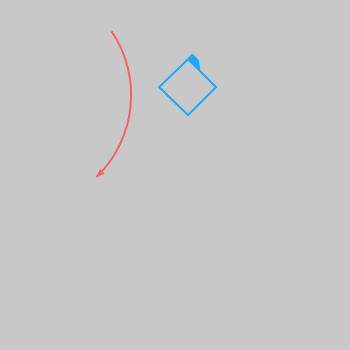

AlignArc performed on the sample arc. The inAlignment is drawn on the first image in blue.
Complexity Level
This filter is available on Advanced Complexity Level.
See Also
- RotateArc – Rotates an arc clockwise around center point.
- TranslateArc – Translates an arc by a vector.
- AlignPath – Moves a path from a local coordinate system to the absolute one.
