Moves a line from a local coordinate system to the absolute one.
Applications
Required when there is a line defined in a local coordinate system, but the next image-related filter in the program does not have any inAlignment input.
| Name | Type | Description | |
|---|---|---|---|
 |
inLine | Line2D | |
|
inAlignment | CoordinateSystem2D | Coordinate system to align to |
|
inInverse | Bool | Switches to the inverse transform |
 |
outAlignedLine | Line2D |
Description
AlignLine aligns the inLine to the inAlignment coordinate system. The input line is translated, rotated and scaled.
The inAlignment is usually a coordinate system found by some template matching algorithm.
Examples
 |
 |

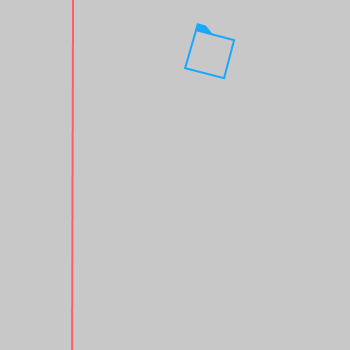

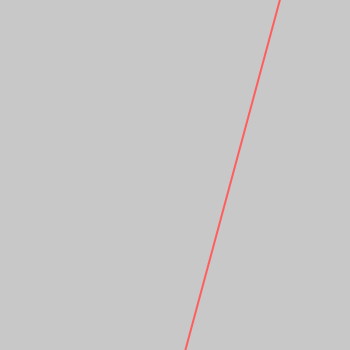

AlignLine performed on the sample line. The inAlignment is drawn on the first image in blue.
Errors
This filter can throw an exception to report error. Read how to deal with errors in Error Handling.
List of possible exceptions:
| Error type | Description |
|---|---|
| DomainError | Indefinite line on input in AlignLine. |
Complexity Level
This filter is available on Advanced Complexity Level.
