Advanced| Module: | FoundationLite |
|---|
Moves a segment from a local coordinate system to the absolute one.
Applications
Required when there is a segment defined in a local coordinate system, but the next image-related filter in the program does not have any inAlignment input.
| Name | Type | Description | |
|---|---|---|---|
 |
inSegment | Segment2D | |
|
inAlignment | CoordinateSystem2D | Coordinate system to align to |
|
inInverse | Bool | Switches to the inverse transform |
 |
outAlignedSegment | Segment2D |
Description
AlignSegment aligns the inSegment to the inAlignment coordinate system. The input segment is translated, rotated and scaled.
The inAlignment is usually a coordinate system found by some template matching algorithm.
Examples
 |
 |

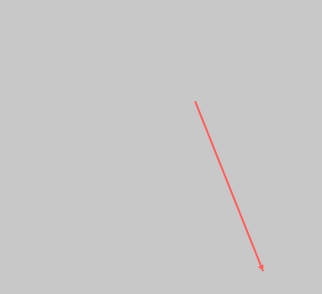

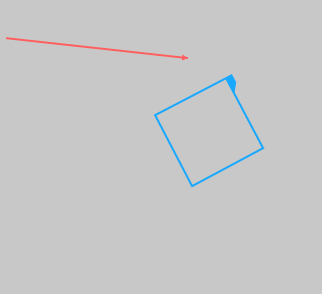

AlignSegment performed on the sample segment. The inAlignment is drawn on the first image in blue.
Complexity Level
This filter is available on Advanced Complexity Level.
See Also
- RotateSegment – Rotates a segment clockwise around a center point.
- TranslateSegment – Translates a segment by a vector.
- AlignPath – Moves a path from a local coordinate system to the absolute one.
