Start » Filter Reference » Geometry 2D » Geometry 2D Spatial Transforms » RescaleArc
Advanced| Module: | FoundationLite |
|---|
Changes radius of an arc and translates its center in relation to a reference point.
| Name | Type | Description | |
|---|---|---|---|
 |
inArc | Arc2D | |
|
inReferencePoint | Point2D* | The point to which the distance of the arc center is changed (no change by default) |
|
inScale | Real | Scaling factor |
|
inInverse | Bool | Switches to the inverse operation |
 |
outArc | Arc2D |
Examples
 |
 |

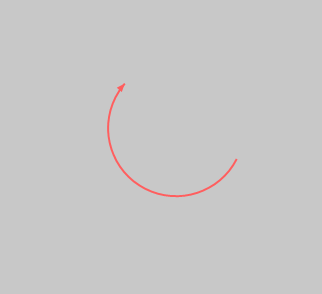

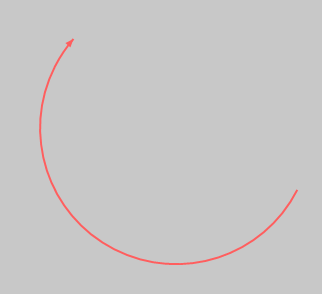

RescaleArc performed on the sample arc, inReferencePoint = auto, inScale = 2.0 and inInverse = false.
Errors
This filter can throw an exception to report error. Read how to deal with errors in Error Handling.
List of possible exceptions:
| Error type | Description |
|---|---|
| DomainError | Scale cannot be zero in an inverse scaling of an arc in RescaleArc. |
Complexity Level
This filter is available on Advanced Complexity Level.
