Changes radius of a circle and translates its center in relation to a reference point.
| Name | Type | Description | |
|---|---|---|---|
 |
inCircle | Circle2D | |
|
inReferencePoint | Point2D* | The point to which the distance of the circle center is changed (no change by default) |
|
inScale | Real | Scaling factor |
|
inInverse | Bool | Switches to the inverse operation |
 |
outCircle | Circle2D |
Examples
 |
 |

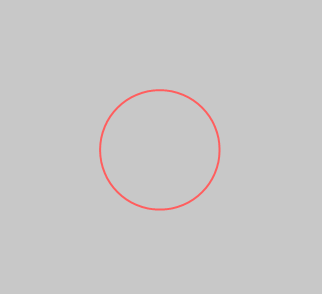

RescaleCircle performed on the sample circle, inReferencePoint = auto, inScale = 0.5 and inInverse = false.
Errors
This filter can throw an exception to report error. Read how to deal with errors in Error Handling.
List of possible exceptions:
| Error type | Description |
|---|---|
| DomainError | Scale cannot be zero in an inverse rescaling of a circle in RescaleCircle. |
Complexity Level
This filter is available on Advanced Complexity Level.
