Start » Filter Reference » Geometry 2D » Geometry 2D Spatial Transforms » RescaleSegment
Advanced| Module: | FoundationLite |
|---|
Lengthens or shortens a segment relatively.
| Name | Type | Description | |
|---|---|---|---|
 |
inSegment | Segment2D | |
|
inReferencePoint | Point2D* | The point to which all distances change linearly (the mass center by default) |
|
inScale | Real | Scaling factor (negative values invert the segment) |
|
inInverse | Bool | Switches to the inverse operation |
 |
outSegment | Segment2D |
Examples
 |
 |

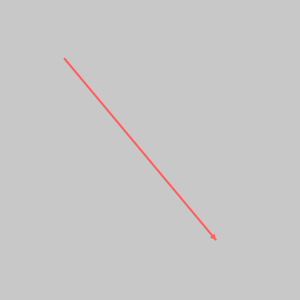

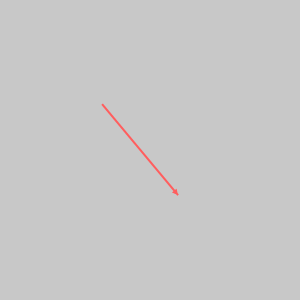

RescaleSegment performed on the sample segment, inReferencePoint = auto, inScale = 2.0 and inInverse = false.
Errors
This filter can throw an exception to report error. Read how to deal with errors in Error Handling.
List of possible exceptions:
| Error type | Description |
|---|---|
| DomainError | Scale cannot be zero in an inverse rescaling of a segment in RescaleSegment. |
Complexity Level
This filter is available on Advanced Complexity Level.
