InpaintImage

Advanced

Module: FoundationPro

Fills in a region of an image with pixel values interpolated from the borders of the area.

Applications

Speculative setting of unknown (or unwanted) pixels. Usually used for preparing incomplete images for further processing.
Name Type Range Description
Input value
 inImage Image
Input value
 inLambda Real 0.0 - 1.0 Ratio between vertical and horizontal interpolation
Input value
 inRegionToInpaint ShapeRegion Region to be inpainted
Input value
 inRoiAlignment CoordinateSystem2D* Adjusts the region
Output value
 outImage Image

Description

The filter fills in the region (inRegionToInpaint) within the image (inImage) using the color of the surrounding (external border) of the region. The value of the pixel is a weighted average of horizontal and vertical linear interpolation, where the weight is defined by the parameter inLambda.
Thus it is a weighted average of four pixels: the closest pixel of the remaining image in four directions, where the weight is reversed distance between pixels times the parameter (which is inLambda for the upper and lower and 1.0-inLambda for the left and right pixels). In case one of those points doesn't exist, it's just omitted in averaging. If none of the point exist, the color is zero.

Examples

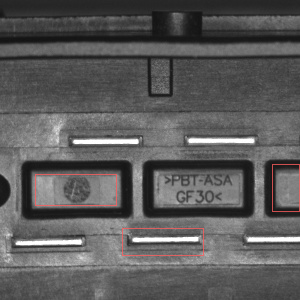

Example image

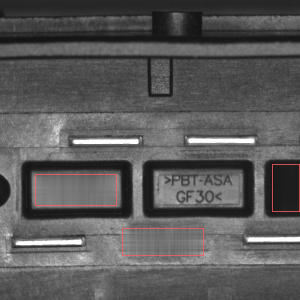

Output for example image

Remarks

It works well when the image around the region is "uniform" in the sense that the (external) border of the region is smooth. If not, the interpolated surface is striped/chequered.

Errors

This filter can throw an exception to report error. Read how to deal with errors in Error Handling.

List of possible exceptions:

Error type Description
DomainError Region exceeds an input image in InpaintImage.

Complexity Level

This filter is available on Advanced Complexity Level.

Filter Group

This filter is member of InpaintImage filter group.
