JoinImages


Module: FoundationLite

Creates a single image by glueing together the two input images in horizontal or vertical direction.

Name Type Range Description
Input value
inImage1 Image First input image
Input value
inImage2 Image Second input image
Input value
inImage3 Image* Third input image
Input value
inImage4 Image* Fourth input image
Input value
inDirection JoinDirection Direction in which images are joined
Input value
inMargin Integer 0 - Thickness (in pixels) of black frame around joined images
Output value
outImage Image Output image

Examples

Description of usage of this filter can be found in examples and tutorial: Image Stitching.

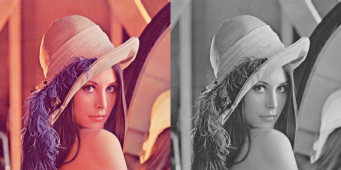

JoinImages used to join two images side by side into a single image.

Errors

This filter can throw an exception to report error. Read how to deal with errors in Error Handling.

List of possible exceptions:

Error type Description
DomainError Input images do not have compatible dimensions in JoinImages.
DomainError Input images do not have the same pixel format in JoinImages.
DomainError Unknown value of JoinDirection in JoinImages.

Complexity Level

This filter is available on Advanced Complexity Level.
