SelectInnerPaths


Module: FoundationPro

Selects paths which are visible from a point.

Name Type Range Description
Input value
inPaths PathArray Input paths from which the inner ones will be selected
Input value
inCenterPoint Point2D Reference point used to determine path visibility
Input value
inTolerance Real 0.0 - 1.0 Fraction of the path characteristic points that are allowed to be invisible from the inCenterPoint not rendering the path not-inner
Output value
outInnerPaths PathArray Paths classified as inner

Description

The operation select those paths from the inPaths array that are visible from inCenterPoint.

A point is visible iff the segment connecting this point to inCenterPoint does not intersect any other path in inPaths.

Examples

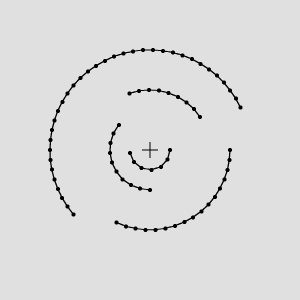

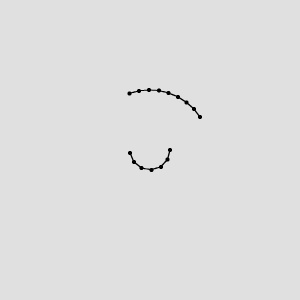

SelectInnerPaths run on the sample data with inTolerance = 0.0.

Complexity Level

This filter is available on Advanced Complexity Level.

See Also

  • SelectOuterPaths – Selects paths which do not obstruct visibility of other paths from a point.
