SetRegionFrame


Module: FoundationLite

Changes the width and the height of a region's frame (but does not rescale the content).

Name Type Range Description
Input will be modified
ioRegion Region
Input value
inWidth Integer 0 - 65535 New frame width
Input value
inHeight Integer 0 - 65535 New frame height

Description

The operation sets the region frame's width and height to new values, while it does not change the location of any of the region pixels. Note that all of the region pixels have to be contained within region frame's dimensions. If this is not the case with selected dimensions, an error with appropriate description occurs.

Examples

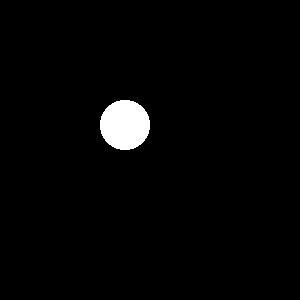

SetRegionFrame used to change dimensions from 150x150 to 300x300.

Errors

This filter can throw an exception to report error. Read how to deal with errors in Error Handling.

List of possible exceptions:

Error type Description
DomainError Resulting region isn't contained in new dimensions in SetRegionFrame.

Complexity Level

This filter is available on Advanced Complexity Level.

See Also

  • CropRegion – Creates a region from a rectangular fragment of another one.
