RegionSymmetricDifference


Module: FoundationLite

Computes a region containing pixels from first or second input region, but not from both.

Name Type Description
Input value
inRegion1 Region First input region
Input value
inRegion2 Region Second input region
Output value
outRegion Region Output region

Description

The operation computes the logical symmetric difference of two given regions. That is, the resulting region contains pixel locations that belong to one of the given regions, but not to both of them. Both dimensions (width and height) of the resulting region are set to the maximum of the corresponding dimensions of the input regions.

Examples

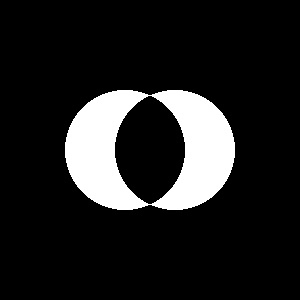

RegionSymmetricDifference run on the sample regions.

Complexity Level

This filter is available on Advanced Complexity Level.

See Also

  • RegionDifference – Computes a region containing pixels from the first input region but not from the second input region.
