Basic| Module: | FoundationBasic |
|---|
Computes the longest segment connecting two pixels contained in region and its length.
| Name | Type | Description | |
|---|---|---|---|
 |
inRegion | Region | Input region |
 |
outDiameter | Segment2D | |
|
outDiameterLength | Real |
Description
The operation finds the most distant pair of region pixels and returns the distance between them (outDiameterLength) and the segment representing the diameter (outDiameter). If there is more than one pair of maximal distance, the returned segment will correspond to one of them. The orientation of the resulting outDiameter is always between 0 and 180 degrees.
Hints
- If the input region is not guaranteed to be non-empty, precede this filter with SkipEmptyRegion.
Examples
 |

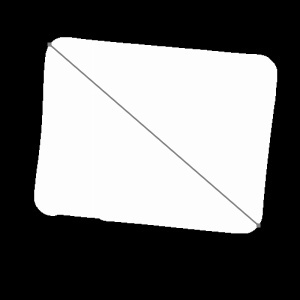

The resulting outDiameterLength = 276.4815, outDiameter segment was drawn onto the region.
Errors
This filter can throw an exception to report error. Read how to deal with errors in Error Handling.
List of possible exceptions:
| Error type | Description |
|---|---|
| DomainError | Empty region on input in RegionDiameter. |
Complexity Level
This filter is available on Basic Complexity Level.
See Also
- RegionPerimeterLength – Computes the length of the input region perimeter.
- PathDiameter – Finds the longest segment connecting two characteristic points of a path.
