Start » Filter Reference » Region » Region Relations » GroupPointsByRegions

GroupPointsByRegions

Advanced

Module: FoundationBasic

For each region returns which points lie inside of it.

Name Type Description
Input value
 inPoints Point2DArray
Input value
 inRegions RegionArray
Output value
 outGroupedIndices IntegerArrayArray
Output value
 outGroupedPoints Point2DArrayArray

Examples

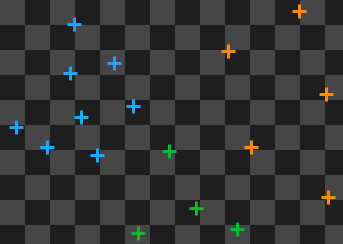

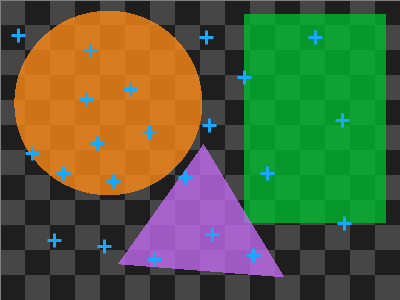

GroupPointsByRegions performed with three input regions.

Remarks

If you need to group also some data associated with the input points then follow this filter with GetMultipleArrayElements and connect inIndices to GroupPointsByRegions.

Complexity Level

This filter is available on Advanced Complexity Level.
