Start » Filter Reference » Region » Region Relations » InscribeRegionInRegion
Module: | FoundationBasic |
---|
Shifts source region so that it is contained in target region.
Name | Type | Description | |
---|---|---|---|
inTargetRegion | Region | Region to contain source region | |
inSourceRegion | Region | Region to be shifted | |
inPossibleShift | ShiftType | Possible directions of shift | |
inFitType | FitType | Determines if the common border length should be maximized | |
outShiftX | Integer? | X coordinate of the shift | |
outShiftY | Integer? | Y coordinate of the shift | |
outShiftedRegion | Region? | Shifted source region |
Description
The filter shifts inSourceRegion so that it is entirely contained in inTargetRegion. When inFitType is FirstFit, the function returns first shift. With inFitType set to BestFit, the function chooses from all possible shifts one that maximizes length of common border of target region and shifted source region. Parameter inPossibleShift defines directions in which source region should be shifted. Possible values are Any, Vertical, Horizontal.
All return values are conditional. In case appropriate shift exists, outShiftX and outShiftY define its coordinates. outShiftedRegion is inSourceRegion translated by vector (outShiftX,outShiftY) and with dimensions of inTargetRegion.

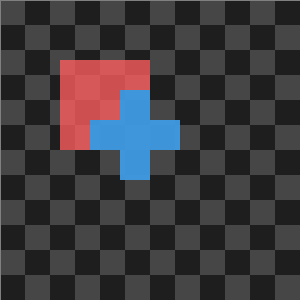

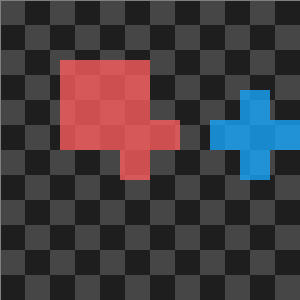

Examples
Remarks
Setting parameter inFitType to BestFit results in much higher computational cost.
Errors
This filter can throw an exception to report error. Read how to deal with errors in Error Handling.
List of possible exceptions:
Error type | Description |
---|---|
DomainError | Source region cannot be empty in InscribeRegionInRegion. |
Complexity Level
This filter is available on Advanced Complexity Level.
See Also
- ErodeRegion_AnyKernel – Performs a morphological erosion on a region using an arbitrary kernel.
- TranslateRegion – Translates a region by a given number of pixels along each axis.
