Start » Filter Reference » Image » Image Drawing » DrawArcs_SingleColor
Module: | FoundationLite |
---|

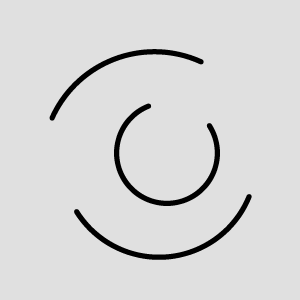

Draws arcs on an image with a single color.
Name | Type | Description | |
---|---|---|---|
inImage | Image | Input image | |
inArcs | Arc2D?Array? | ||
inArcAlignment | CoordinateSystem2D* | ||
inColor | Pixel | ||
inDrawingStyle | DrawingStyle | ||
inForceRgb | Bool | Filter will convert monochromatic image to RGB if needed | |
outImage | Image | Output image |
Hints
- Connect an image source to the inImage input. Drawing will be done on this image.
- If you want to draw on an empty background, use EmptyImage filter before.
- Define inArcs. This will be the primitives to be drawn.
- Define inColor. Please note, that on an N-channel image only first N components of the color will be used.
- Set inForceRgb to True, if you want to get a 3-channel output regardless of what is on the input.
- Set inDrawingStyle to control quality, opacity, thickness, filling, point shapes and sizes.
Examples
Description of usage of this filter can be found in examples and tutorial: Parallel Image Saving.
Complexity Level
This filter is available on Basic Complexity Level.
Filter Group
This filter is member of DrawArcs filter group.
