cvCopyMakeBorder


Module: OpenCV

Forms a border around the image.

Name Type Range Description
Input value
inSrc Image Source image.
Input value
inTop Integer 0 - Parameter specifying how many pixels in top direction from the source image rectangle to extrapolate.
Input value
inBottom Integer 0 - Parameter specifying how many pixels in bottom direction from the source image rectangle to extrapolate.
Input value
inLeft Integer 0 - Parameter specifying how many pixels in left direction from the source image rectangle to extrapolate.
Input value
inRight Integer 0 - Parameter specifying how many pixels in right direction from the source image rectangle to extrapolate.
Input value
inBorderType CvBorderType Border type.
Input value
inValue Pixel* Border value if borderType==BORDER_CONSTANT .
Output value
outDst Image Output image.

Description

The function copies the source image into the middle of the destination image. The areas to the left, to the right, above and below the copied source image will be filled with extrapolated pixels. Pixels are extrapolated according to method specified in inBorderType.

Examples

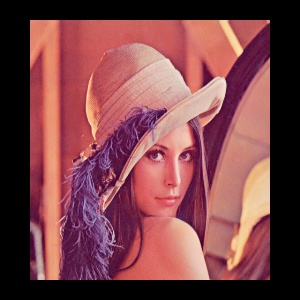

cvCopyMakeBorder performed on sample image with inTop = 20, inBottom = 20, inLeft = 30, inRight = 30, inBorderType = BORDER_CONSTANT.

Complexity Level

This filter is available on Basic Complexity Level.
