MultiplyImage

Advanced

Module: FoundationLite

Multiplies each pixel by a scalar value.

Name Type Description
Input value
 inImage Image Input image
Input value
 inRoi Region* Range of pixels to be processed
Input value
 inValue Real Multiplier
Output value
 outImage Image Output image

Description

The operation increases the brightness of an image by multiplying each of its pixels by a fixed value.

\forall_{i,j} \text{\textbf{OutImage} }_{i,j} = \text{\textbf{InImage} }_{i,j} \cdot \text{\textbf{inValue} }

Whenever the resulting value exceeds the range of pixel values, it is clipped to the nearest proper value.

Examples

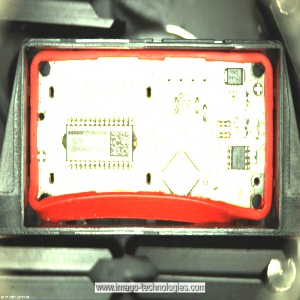

The MultiplyImage performed on the sample image with inValue = 2.0.

Hardware Acceleration

This operation is optimized for SSE2 technology for pixels of types: UINT8, SINT8, SINT16, REAL.

This operation supports automatic parallelization for multicore and multiprocessor systems.

Errors

This filter can throw an exception to report error. Read how to deal with errors in Error Handling.

List of possible exceptions:

Error type Description
DomainError Region exceeds an input image in MultiplyImage.

Complexity Level

This filter is available on Advanced Complexity Level.

See Also

  • DivideImage – Divides each pixel by a scalar value.
