CreateCylinderMap

Basic

Module: Calibration

Creates a spatial map for transformations from a cylinder surface to a flat rectangle.

Applications

Inspection of the surface of bottles and other cylindrical objects. The result is used by RemapImage.
Name Type Range Description
Input value
 inImageFormat ImageFormat Information about dimensions, depth and pixel type of the image
Input value
 inCylinderRectangle Rectangle2D Bounding rectangle of the cylinder
Input value
 inCylinderRadiusCorrection Real 0.0 - How many pixels the cylinder radius is larger than the visible circle radius
Input value
 inOpticalAxis Point2D* Coordinates of the camera optical axis (Auto = image center)
Input value
 inNewWidth Integer* 1 - Width of an image created by output spatial map application
Input value
 inNewHeight Integer* 1 - Height of an image created by output spatial map application
Input value
 inMargin Integer 0 - Width of the cylinder extreme points zone excluded from spatial map
Input value
 inInterpolationMethod InterpolationMethod Interpolation method used in extraction of image pixel values
Input value
 inCylinderMappingMode CylinderMappingMode Determines which pixels of the mapped cylinder have to be within the given rectangle.
Output value
 outSpatialMap SpatialMap Output spatial map
Output value
 outOutputRegion Region Pixels set by the spatial map application

Description

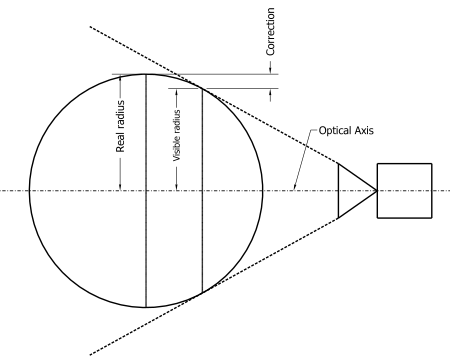

The filter creates a spatial map that allows to transform a cylinder surface to a flat rectangle. The inCylinderRectangle should be the minimal rectangle that contains the given cylinder. Because of the presence of a camera, the cylinder radius is not equal to but greater than the width of the input rectangle. To compensate the difference, inCylinderRadiusCorrection has to be properly set experimentally. Another important parameter is the inOpticalAxis input that represents the coordinates of the camera optical axis, i.e. it shows which pixel is directly under the camera. It is set to the input image center by default.

Examples

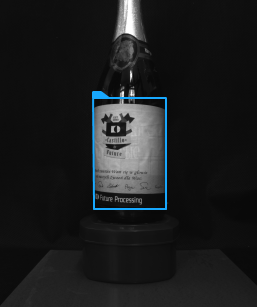

Description of usage of this filter can be found in examples and tutorial: Bottle Flattening.

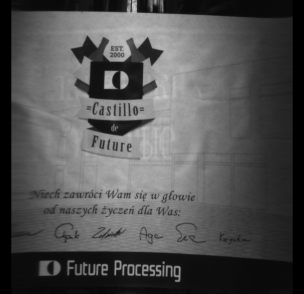

Results of applying RemapImage with a spatial map created with the CreateCylinderMap filter.

Hardware Acceleration

This operation supports automatic parallelization for multicore and multiprocessor systems.

Errors

This filter can throw an exception to report error. Read how to deal with errors in Error Handling.

List of possible exceptions:

Error type Description
DomainError Cylinder stripe within rectangle thinner then a single pixel in CreateCylinderMap.
DomainError Empty domain in CreateCylinderMap.
DomainError Mapped image width too large in CreateCylinderMap.
DomainError Margin too large in CreateCylinderMap.

Complexity Level

This filter is available on Basic Complexity Level.
