PathAlongArc


Module: FoundationBasic

Transforms a path to a coordinate system in which the 'axis' arc is vertical or horizontal.

Applications

Usually used to revert an ImageAlongArc transformation.
Name Type Description
Input value
inPath Path Input path
Input value
inAxis Arc2D Input axis arc
Input value
inAxisType Axis Type of axis the input axis arc is parallel to
Input value
inAxisCoordinate Real Coordinate of the axis arc
Input value
inInverse Bool Switches to the inverse operation
Output value
outPath Path Transformed path

Description

This filter transforms each point in inPath the same way how PointAlongArc does.

Examples

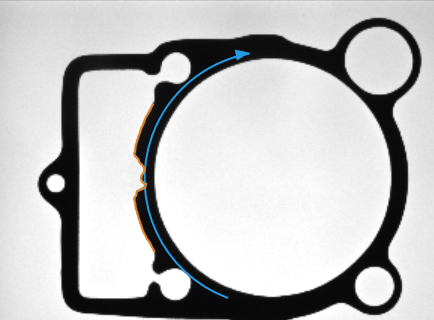

ImageAlongArc performed on the sample image with inAxisType = X and inScanWidth = 50. Blue path on output image was reprojected on original image (as orange path) using PathAlongArc with inAxisType = X, inAxisCoordinate = 25, inInverse = true. ImageAlongArc and PathAlongArc used the same arc for transformations.

Remarks

No new points are being added to input path during transformation, and this may lead to some "distortions" of path. This is especially visible on long, straight portions of input path, which are described with only 2 points: the beginning one and the ending one. After transformation, such part of path is still a line, but it may not be corresponding to the transformed image. Easy way to overcome this problem is to increase number of points creating an transformed path.

Complexity Level

This filter is available on Advanced Complexity Level.

See Also

  • ImageAlongArc – Creates an image from pixels traversed along an arc.
  • PointAlongArc – Transforms a point to a coordinate system in which the 'axis' arc is vertical or horizontal.
  • PathAlongPath – Transforms a path to a coordinate system in which the 'axis' path is vertical or horizontal.
