ImageAlongArc

Advanced

Module: FoundationBasic

Creates an image from pixels traversed along an arc.

Applications

E.g. "Unwrapping" of object contours, so that they appear as 1D structures on the output image.
Name Type Range Description
Input value
 inImage Image Input image
Input value
 inAxisArc Arc2D Input arc
Input value
 inAxisArcAlignment CoordinateSystem2D* Adjusts the axis arc to the position of the inspected object
Input value
 inScanWidth Integer 1 - The width of the stripe of pixels along the given arc
Input value
 inAxisType Axis Type of axis the transformed axis arc will be parallel to
Input value
 inInterpolationMethod InterpolationMethod The interpolation method used to compute pixel brightness in locations of not-integer coordinates
Input value
 inBorderColor Pixel* Color of pixel outside image. If inBorderColor = NIL then algorithm repeats color of boarder.
Output value
 outImage Image Output image
Output value
 outAlignedAxisArc Arc2D Input arc after transformation (in the image coordinates)
Diagnostic input
 diagSamplingPoints PathArray Array of paths each one containing the sampling points corresponding to one row of the resulting image

Description

The operation transforms the stripe of pixels of width inScanWidth along the inAxisArc in the way that transforms the arc into straight segment. Two modes of pixel interpolation are available, the bilinear filtering being more precise and computationally expensive.

The optional parameter inAxisArcAlignment defines the transform to be performed on the inAxisArc so that the resulting path is defined in a new context, e.g. returned by one of Template Matching filters.

Examples

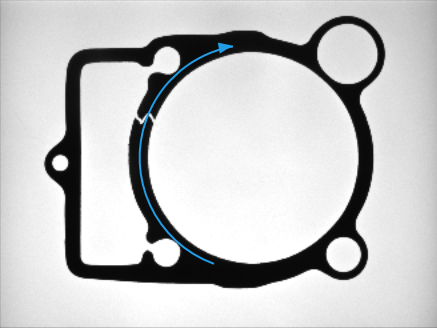

ImageAlongArc performed on the sample image with inScanWidth = 50 and inAxisType = X.

Complexity Level

This filter is available on Advanced Complexity Level.
