CreateSegmentRegion

Basic

Module: FoundationLite

Creates a segment region.

Name Type Range Description
Input value
 inSegment Segment2D
Input value
 inSegmentAlignment CoordinateSystem2D*
Input value
 inWidth Real 1.0 - Segment width
Input value
 inFrameWidth Integer 0 - 65535
Input value
 inFrameHeight Integer 0 - 65535
Input value
 inRound Bool Make ends of segment round
Output value
 outRegion Region Output region
Output value
 outAlignedSegment Segment2D

Description

Filter creates region based on an input Segment2D. To specify line width use inWidth.

Filter creates segment region by creating rectangle located between inSegment points. To make ends round use inRound.

Examples

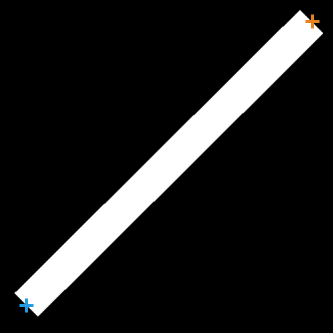

Example region with inRound=False

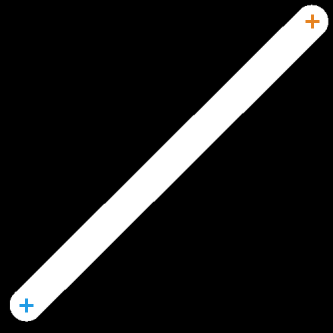

Example region with inRound=True

Complexity Level

This filter is available on Basic Complexity Level.
