RegionContours

Advanced

Module: FoundationBasic

Computes an array of closed paths corresponding to the contours of the input region.

Name Type Description
Input value
 inRegion Region Input region
Input value
 inContourMode RegionContourMode
Input value
 inRegionConnectivity RegionConnectivity Region connectivity semantics
Output value
 outContours PathArray

Description

The operation forms an array of paths that, depending on the value of the inContourMode parameter:

  • Pass through the centers of boundary pixels of the region, if inContourMode is set to PixelCenters
  • Run along the edges of boundary pixels of the region, if inContourMode is set to PixelEdges

To compute the approximation of the region perimeter length, one can use RegionPerimeterLength filter.

Examples

Description of usage of this filter can be found in examples and tutorial: Capsules, Rubber Ring, Rubber Ring (Simple).

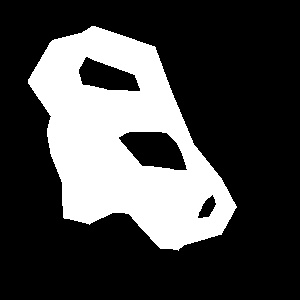

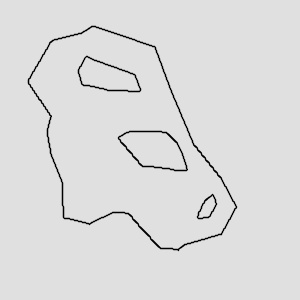

The computed outContours array drawn onto an empty image.

Complexity Level

This filter is available on Advanced Complexity Level.
