RegionInscribedBox

Advanced

Module: FoundationBasic

Computes the largest box contained in a region.

Name Type Range Description
Input value
 inRegion Region Input region
Input value
 inMinAspectRatio Real 0.0 - Minimal aspect ratio of found box
Input value
 inMaxAspectRatio Real* 0.0 - Maximal aspect ratio of found box (reciprocal of inMinAspectRatio by default)
Input value
 inMinWidth Integer 1 - 65535 Minimal width of found box
Input value
 inMaxWidth Integer* 1 - 65535 Maximal width of found box
Input value
 inMinHeight Integer 1 - 65535 Minimal height of found box
Input value
 inMaxHeight Integer* 1 - 65535 Maximal height of found box
Output value
 outBox Box? Found box with largest area

Examples

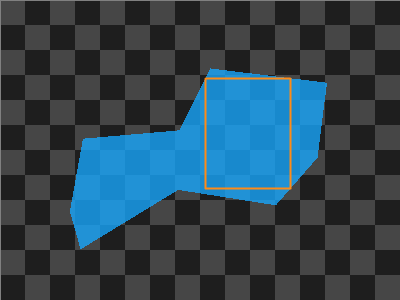

RegionInscribedBox performed on a sample region with inMaxAspectRatio = Auto.

RegionInscribedBox performed on a sample region with inMaxAspectRatio = 2.0.

Complexity Level

This filter is available on Advanced Complexity Level.
