Splits a region into blobs, removes blobs not fulfilling the specified condition, and merges the rest back into one region.
| Name | Type | Range | Description | |
|---|---|---|---|---|
 |
inRegion | Region | Input region | |
|
inConnectivity | RegionConnectivity | Type of connectivity used for the region foreground | |
|
inFeature | RegionFeature | Region feature value to be computed | |
|
inMinimum | Real* | 0.0 -  |
Minimal value of the considered feature |
|
inMaximum | Real* | 0.0 - |
Maximal value of the considered feature |
|
inRemoveBoundaryBlobs | Bool | Flag indicating whether the blobs on border of the input region should be removed or not | |
 |
outRegion | Region | Output region | |
Description
This filter removes regions, which don't fulfill specific conditions given in inMinimum and inMaximum inputs. Both inputs are optional, which means that you don't have to set fixed limitations of your parameter's range. Classification can be based on different region features, for example area, convexity, mass center.
Examples

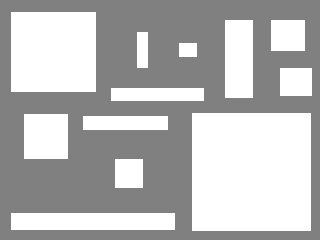

Original image |
|

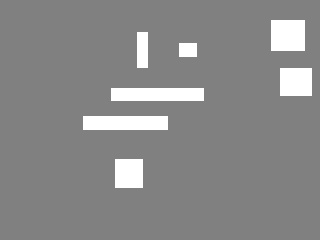

Too big elements have been removed. |

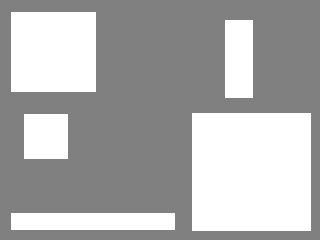

Too small elements have been removed. |
Complexity Level
This filter is available on Advanced Complexity Level.
See Also
- ClassifyRegions – Splits an array of regions according to the selected feature and range.
- SplitRegionIntoBlobs – Splits a region into an array of regions corresponding to its connected components.
- RegionUnion_OfArray – Computes a region containing all the pixels that any of the input regions contains.
