Start » Filter Reference » Region » Region Morphology » TopHatRegion
Advanced| Module: | FoundationBasic |
|---|
Performs a morphological white top hat operation on a region using a predefined kernel.
| Name | Type | Range | Description | |
|---|---|---|---|---|
 |
inRegion | Region | Input region | |
|
inKernel | KernelShape | Kernel shape (predefined) | |
|
inRadiusX | Integer | 0 -  |
Nearly half of the kernel's width (2*R+1) |
|
inRadiusY | Integer* | 0 - |
Nearly half of the kernel's height (2*R+1), or same as inRadiusX |
 |
outRegion | Region | Output region | |
Description
Extracts from region small parts. Uses predefined kernels.
Is performed by running consecutively two filters. OpenRegion to remove small parts from region and RegionDifference to remove rest of the region.
Examples
 |
 |

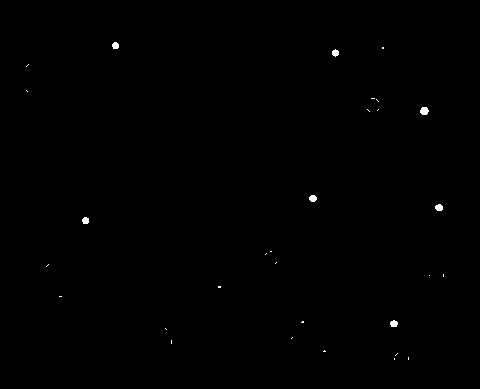

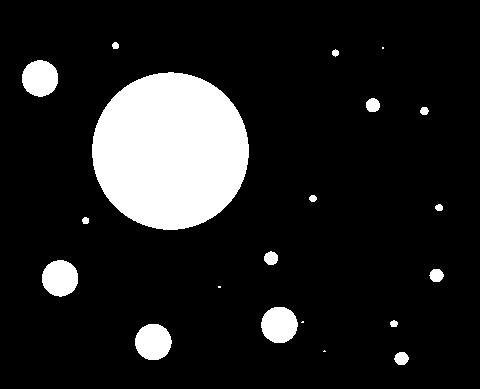

Top Hat used to remove bigger parts of region. Used parameters inKernel=Ellipse and inRadiusX=5. Region marked white. Source image on the left and result on the right.
Errors
This filter can throw an exception to report error. Read how to deal with errors in Error Handling.
List of possible exceptions:
| Error type | Description |
|---|---|
| DomainError | Unsupported kernel in TopHatRegion. |
Complexity Level
This filter is available on Advanced Complexity Level.
Filter Group
This filter is member of TopHatRegion filter group.
