RotateRegion


Module: FoundationBasic

Rotates a region around a specified point.

Name Type Range Description
Input value
inRegion Region Input region
Input value
inCenter Point2D* Center of rotation
Input value
inAngle Real Clockwise rotation angle
Input value
inInverse Bool Switches to counter-clockwise rotation
Input value
inSizeMode RotationSizeMode Determines whether to extent the region size to fit the rotated region.
Input value
inFrameWidth Integer* 0 - 65535 Output region frame width, ignored when inSizeMode is set to RotationSizeMode::Fit.
Input value
inFrameHeight Integer* 0 - 65535 Output region frame height, ignored when inSizeMode is set to RotationSizeMode::Fit.
Output value
outRegion Region Output region
Output value
outOutputAlignment CoordinateSystem2D Alignment of the output region

Description

The operation rotates a region by the inAngle degrees around inCenter point. If the inCenter is not provided, the rotation is conducted around the mass center of the region.

Examples

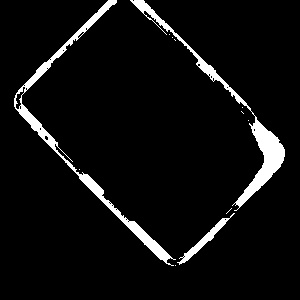

RotateRegion performed on the sample region with inAngle set to 45.

Errors

This filter can throw an exception to report error. Read how to deal with errors in Error Handling.

List of possible exceptions:

Error type Description
DomainError Empty region on input when rotation center is Nil in RotateRegion.

Complexity Level

This filter is available on Advanced Complexity Level.
